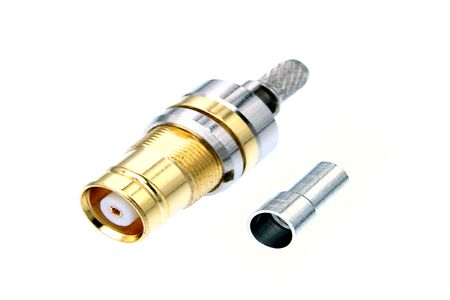

| Item Name | 1.6/5.6 JACK CRIMP TYPE |
| Model NO. | D-001 |
| |
 Description |
| Specifications |
| SERIES |
1.6/5.6 |
| CONNECTOR GENDER |
JACK |
| CONTACT GENDER |
FEMALE |
| MATING TYPE |
CRIMP |
| OUTLINE |
STRAIGHT |
| IMPEDANCE |
75 OHM |
| CABLE |
RG-58，RG-59，RG-174，RG-179，BT-2003，BT-3002，FLEX 2，FLEX 3，FLEX 5，H122，ST-212，ST-214，2.5C2V，3C2V，2YCY，2YCCY |
|
| |
| False |
| Application |
1.6/5.6 coaxial connectors are miniature 75 Ohm connectors with thread coupling mechanisms which provide positive mating.
The design of the 1.6/5.6 permits dense conneector packing and makes the connectors suitable applications where space limitation is an important factor. |
 |
|
